Your Location: Home -> Products -> Deep Well Pump

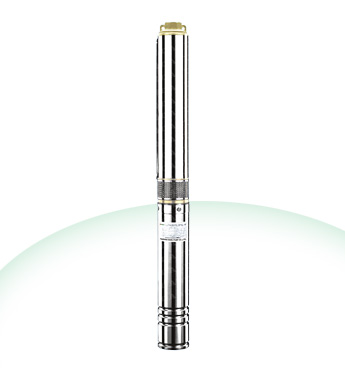

4SD 4 (4" Submersible Pumps)
Applications:
  For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications, for garden use and irrigation.

Operating conditions:
  Water temperature up to 55¡æ.
Minimum internal diameter of well:102mm.
Maximum immersion depth:40m.

Motor:
  (1)Full obturated screen motor
(2)Rewind able motor
Three-phase:230V¡À10%(220-240V)
Three-phase:440V¡À10%(380-415V)
Single-phase:230V¡À10%(220-240V)
Control box with capacitor, on request.

Special features on request:
  Other voltages.
Frequency 60HZ.
Other mechanical seal.
The length of cable over than 40m.
Cable gland with cable fasteners.

Warranty:1 year
  (as per our general sales con ditions).
